$59.95
/
Shipping calculated at checkout.
With the NRS Swivel and Plates you can turn any NRS Padded Raft Seat into a swivel seat!
Bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount.

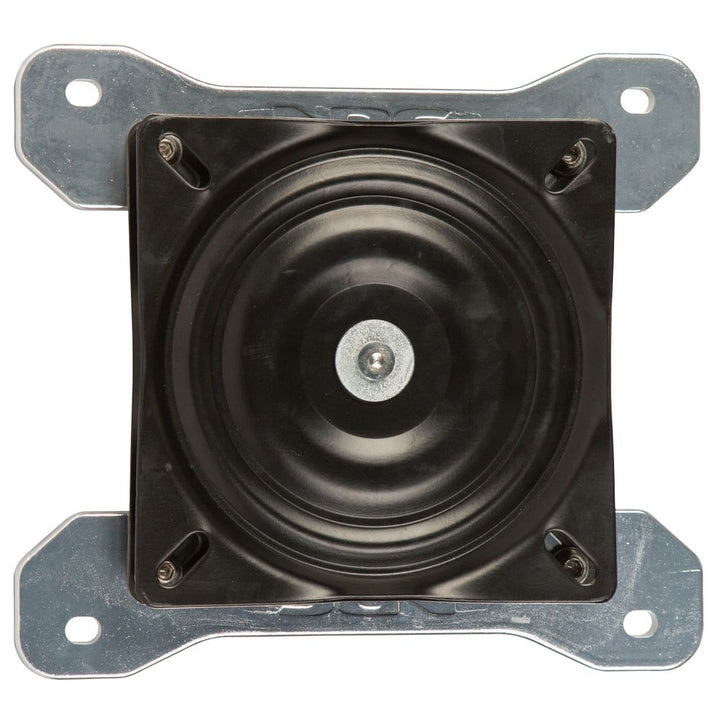

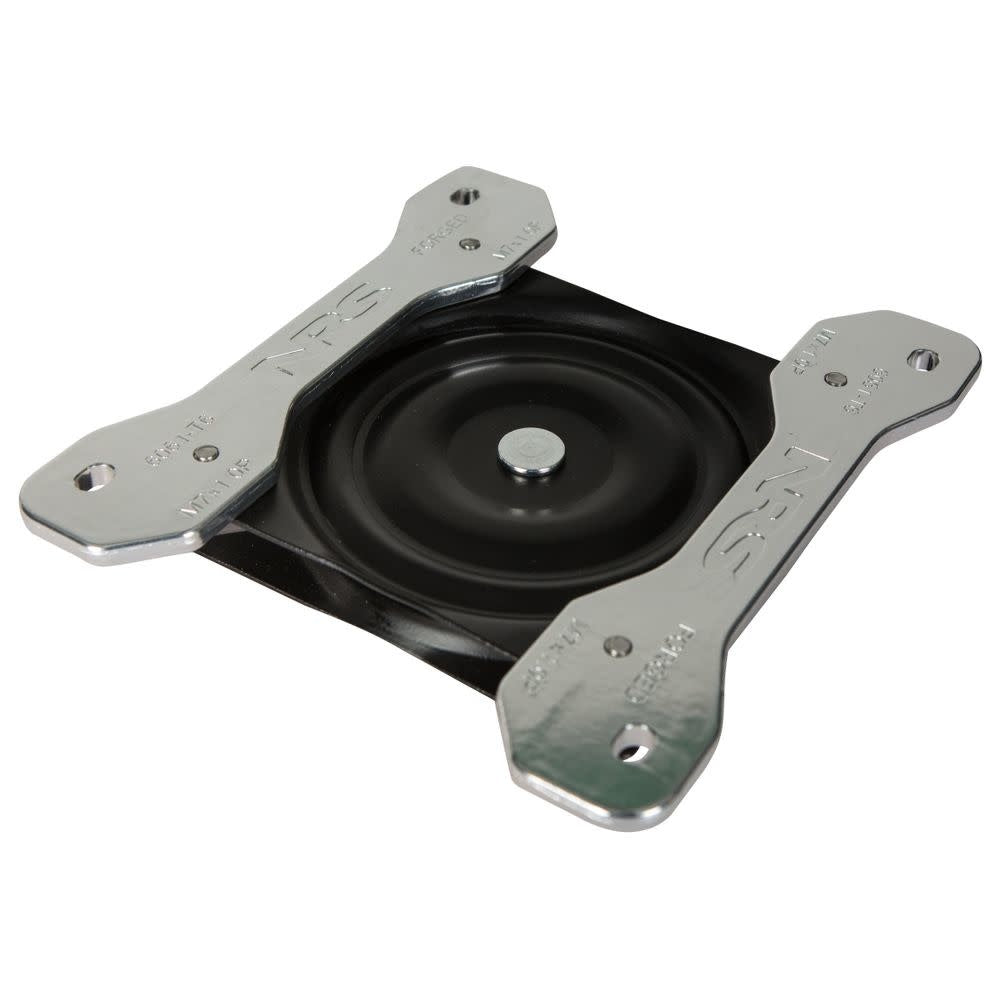

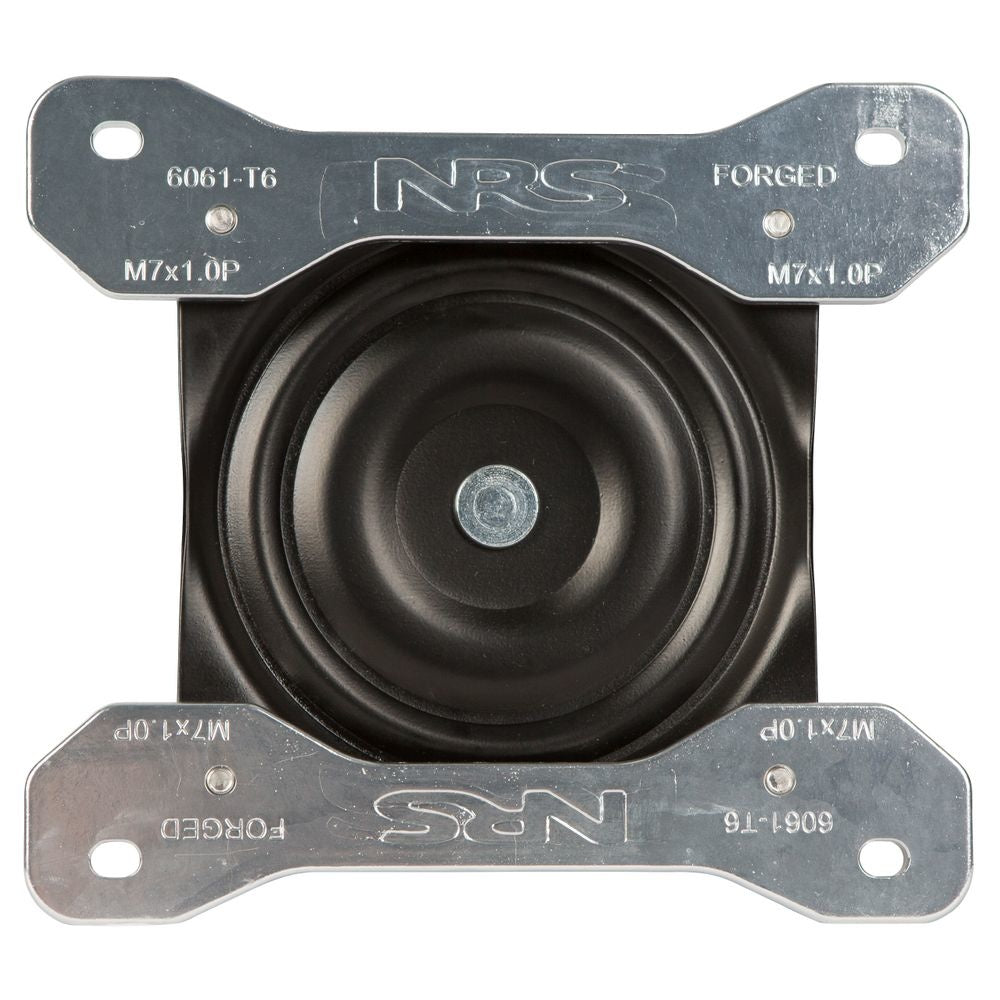

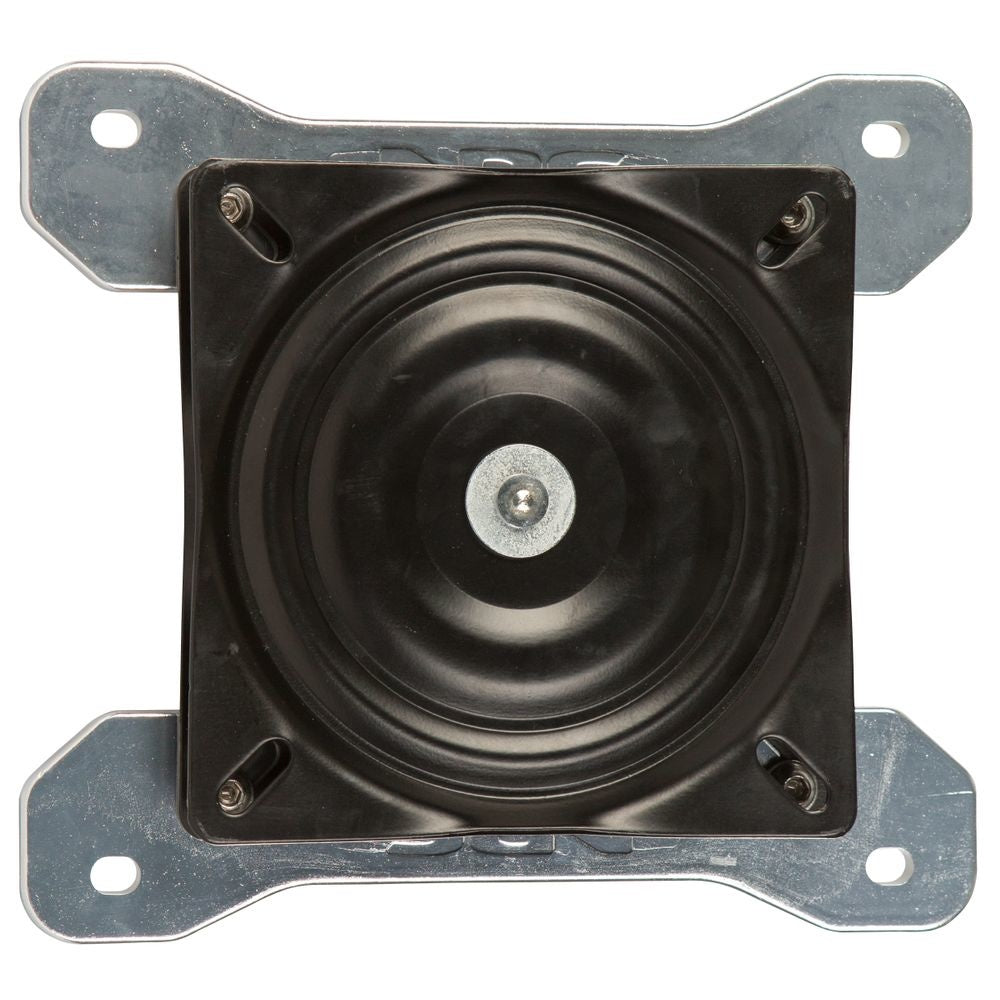

  • The unit consists of a swivel base that allows the seat to rotate 360 degrees, and two hot-forged aluminum plates that are bolted to it.
  • The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Use the bolts you have with your seat to attach it to the aluminum plates.
  • All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the 5.25" x 5.25" pattern for the swivel.
  • If you have an older seat bar that doesn't have those holes, just drill four 1/4" holes in that 5.25" x 5.25" pattern.
  • The unit comes with mounting hardware: 4 each 1/4"-20 x 1" bolts and lock nuts, and 8 flat washers.
  • The Universal Seat Mount, Item # 94015.01, has both the 7" x 7.5" and 5.25" x 5.25" hole patterns. It can be used for mounting your swivel seat anywhere on the 1 5/8" frame pipe.
Dimensions:
  • Seat plate measurements - 8.25" x 9.25"
  • Swivel plate measurements - 6.25" x 6.25"
  • Seat plate bolt hole pattern - 7" x 7.5"
  • Swivel plate bolt hole pattern - 5.25" x 5.25"
Weight: 3.125 lbs.

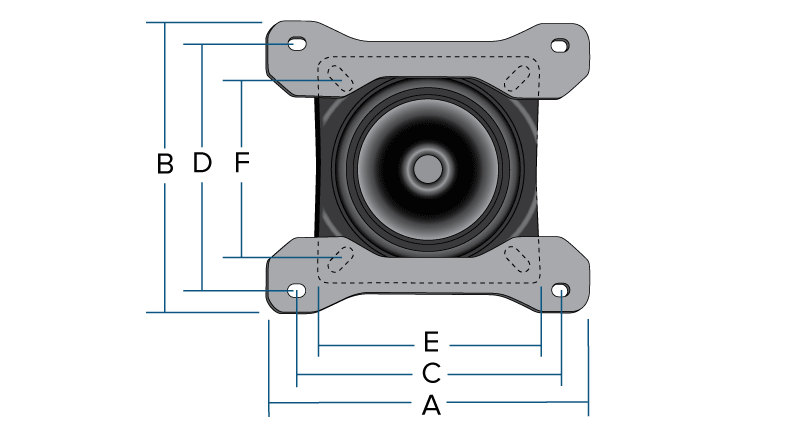

A B C D E F
9 1/4" 8 1/4" 7 1/2" 7" 6 3/8" 4 3/4" - 5 1/2"
